| Description |
|
| Capacities: (Emax ) |
|
 |
| 10,20,50,100,200,250KG |
Execution standard: |
| |
GB/T 7551-2008 Certificate |
| Rated output: |
(eqv OIML R60) |
| 2.0mV/V |
Combined error: 0.015% |
| Digital:1,000,000d |
|
| |
Sealed to IEC 529: |
| Accuracy: |
Protection grade: IP67 or IP68. |
| C3 OIML R60 |
Protection against total immersion |
| |
in water for 30 minutes at a pressure |
| Material of elastomer: |
corresponding to a 1 m head of water. |
| Alloy steel or stainless steel |
 DataSheet>> |

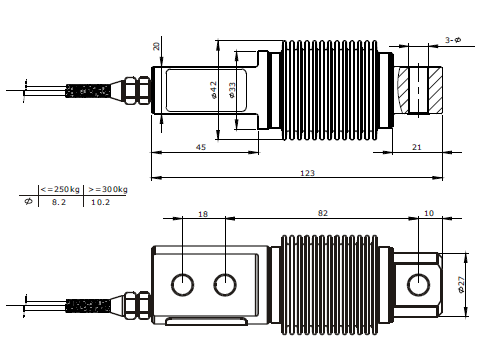

| Dimensions |
(In mm. 1mm = 0.03937 inches) |
Circuit Diagram |
 |
Electrical Termination |
| 4 Core cable standard lengths: |
| 3m |
| Diameter:Φ6 |
| Connection: |
| Refer to the following drawing: |
.png) |
| Notice: |
| Do not change the length of cable, or lese, |
| it will effect the sensitivity of load cell. |
| Specification |
|
|
| Item\ Parameter |
C3 |
Unit |
| Rated load (Emax): |
10,20,50,100,200,250
|
t |
Maximal numbers of load cell verification
Intervals (Nlc): |
3000 |
d |
Minimum load cell verification intervals
Intervals ( Vmin): |
0.01 |
% of rated load |
| Rated output (Cn): |
2.0± 0.1% |
mV/V |
| *Combined error: |
0.015 |
±% of rated output |
| Temperature effect on sensitivity(Tkc): |
0.0012 |
±% of rated output/°C |
| Temperature effect on zero balance(Tk0): |
0.0008 |
±% of rated output/°C |
| Zero balance: |
1.0 |
±% of rated output |
| Input resistance(Rlc): |
385±5 |
Ω(Ohms) |
| Output resistance(Ro): |
351±2 |
Ω(Ohms) |
| Insulation resistance: |
≥5000 |
MΩ(Mega-Ohms) |
| Safe overload: |
150 |
% of rated capability |
| Ultimate overload: |
300 |
% of rated capability |
| Operating temperature range: |
-20~+70/-20~+160 |
°C / °F |
| Recommend excitation: |
8~15 |
V( DC or AC) |
| Maximum excitation: |
18 |
V( DC or AC) |
| Material of elastomer: |
Alloy steel / Stainless steel |
| Protection class: |
IP67/IP68 |
|
The data for deviation of synthesis error,TK0,TKc are typicl values. The sum of these data meets the
requirements according to OIML R60
