    Maken>Indicators>Digital Indicators>BWI-31
    Description


    Worldwide licence exempt: 2.4GHZ oper ating frequency

    Range Min: not less than 100m

    Battery working life:
    Active not less than 36 hours(full charge and turn off bcaklight)

    Display:
    LCD 128*64 with backlighting show wight value:6 bit show working life of battery
    show strong of signal

    Hold on the peak value : Can contact with computer by Rs232

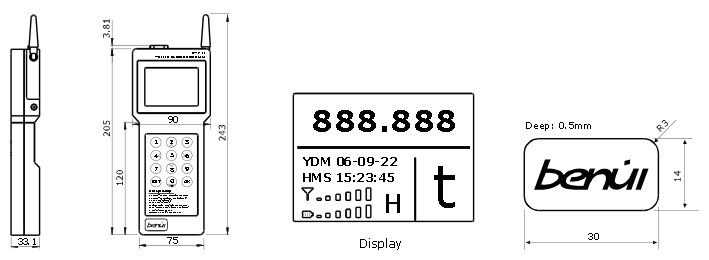

    Dimensions
    (In mm. 1mm = 0.03937 inches)

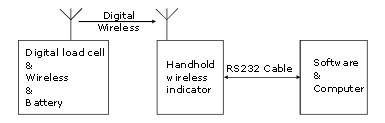

    Work Principle


    First,the load cell's out-put sign al is digital, Digital compensation and temperature compensation will be finished in internal. Though 2.4G wireless module to launch after reasonable encoding.
    Handheld receive load cell output and itsinternal battery power consumption values then show them on the LCD display, and handheld through the Rs232 output to a computer or large-screen display. If necessary,Multi-channel working can be changed, One handheld can be connected to up to 16 sensors.
